Dynojet Power Commander V
   Dynojet Power Vision for Harley Davidson - The latest in Dynojets Power Commander technology to enhance your bikes performance, with Superior Dynotuning and Custom Mapping Services available

phone: 309-517-1361                 To show product directory click here       back to PC list page

Power Vision for PC V

for  2001-2016 Harley Davidson

???? about purchase    Call  888-526-3250  toll free

Type in coupon code dynojet for a $20.00 discount on your order

Power Vision Product Details

What is Power Vision?

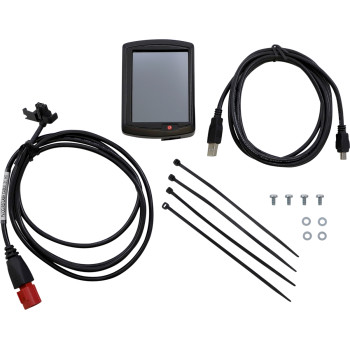

Power Vision is the most powerful and quickest flash tuning device for Harley-Davidson® motorcycles in the market today. It is a performance tuner and data monitor that offers the latest flash tuning technology, data logging, and other industry exclusive features. The Power Vision can tune any fuel injected Harley-Davidson motorcycle with the Delphi ECM , including 2016 models. The Power Vision Product Suite includes a full color touch screen flash device, built in Auto Tune Basic Mode*, vehicle interface cable, and WinPV (Windows PC based tuning application).

The Power Vision incorporates a very sophisticated, yet simple touch screen display that DOES NOT require the use of a computer to flash your bike or to use Auto Tune*! Simply select the tune, follow the on-screen prompts to download the tune, and if you’d like, edit your tune without ever touching a computer! That’s right, you can flash and make changes to your tune without ever getting off your bike.

Capabilities

Power Vision downloads and stores the stock calibration, and lets you select up to 8 different tunes that are stored on the device, and can be flashed to your bike. The types of tunes include:

  • Dynojet Preconfigured Tunes - Tunes for YOUR bike pre-loaded on the device... ready to go, right out of the box! Power Vision identifies your bike’s information and automatically sorts hundreds of applicable dyno proven tunes for you to choose from.
  • Custom Tunes – loaded by a custom tuning shop, or received via email and loaded on the device.
  • Copy of Original or Copy of Current - a version of the Original calibration that was saved when the Power Vision was married to the ECM. Or a version of the Current calibration that is currently saved in the ECM.

Power Vision provides insightful, valuable information on how your bike is running:

  • Display all J1850 and CAN H-D vehicle data as well as wide band air/fuel ratio1and various channels (such as MPG instant and trip MPG)
  • AutoTune2 Basic and Pro– AutoTune is built into the Power Vision so you can modify your tune as you ride without using a computer
  • Check and clear diagnostic codes
  • Reset adaptive fuel trims and idle offset (with bike running)

Several ways to obtain Power Vision tunes (maps)

There are three types of tunes that you can deliver to your bike: pre-configured tunes (loaded on the device from Dynojet), custom tunes (loaded or emailed to you by a custom tuner, or you can use a copy of your original tune to tweak. If you choose to use the pre-configured tunes, the device will identify the ECM strategy / software level of the stock calibration, and then automatically sort applicable tune files in groups of relevant modifications for YOUR bike.

Hundreds of tunes are available and the organized into relevant categories (ie, stock improved, air intake kits, slip-ons, full exhaust systems, cams, etc.) for ease of customer use. The Power Vision holds up to 8 tunes (any combination of the 3 types) for you to choose from at your convenience, and these can be replaced as many times as you like with updated tunes.

For Dynojet preconfigured tunes, simply run the Auto Update Client

Power Vision Autotune Product Overview

Autotune Basic and Pro

Autotune for Power Vision is a built-in feature inside the device itself that is free of charge. Autotune gives you the capability to perform closed-loop tuning of the Power Vision so you can further enhance your motorcycle’s calibration. Power Vision is a ECM flash tuning device, so the adjustments are calculated real-time in the Power Vision, this allows you to review the changes and either accept or ignore them, before flashing the updated tune to the bike’s ECM. There are two versions of Autotune for the Power Vision – Basic and Pro.

Autotune Basic: This is included for FREE with the Power Vision. It utilizes the stock narrow-band oxygen sensors that come equipped on the motorcycle*. With a few simple clicks of the Power Vision’s touch-screen, you can perform real-time data-logging and calibration to your Power Vision. Works with all 2001-2016 models equipped with factory oxygen sensors.

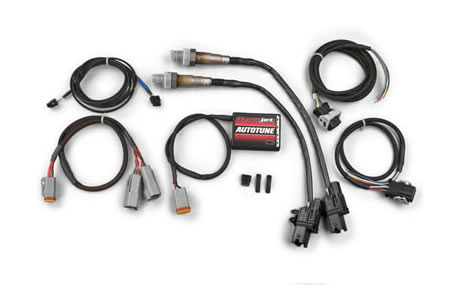

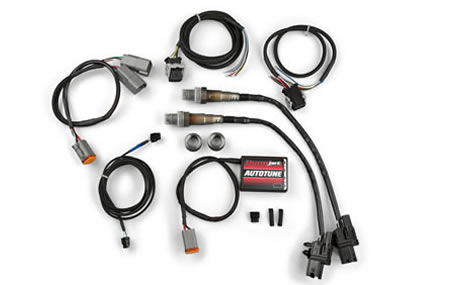

Autotune Pro: Requires the purchase of the Autotune Pro accessory kit. It includes a control module, two wide-band oxygen sensors, cables, and everything needed for installation.

  • AT-110: Autotune Pro kit for PV-1 (J1850) without O2 bungs
  • AT-110B: Autotune Pro kit for PV-1 (J1850) with O2 bungs
  • AT-120: Autotune Pro kit for PV-2 (CAN) without O2 bungs
  • AT-120B: Autotune Pro kit for PV-2 (CAN) with O2 bungs





year / model part # retail our price
Harley Davidson

POWER VISION  power vision  used to read and clean trouble codes

Delphi  Power Vision

Dynojet's answer to the racetuner. Reflashes your stock ecu with different fuel maps. Once used it is mated to the bike. Totally custom mappable too.


 for: all HD models with Delphi EFI
2001 - 2010 Softail
2002 - 2013 Touring
2002 + V-Rod
2004 - 2011 Dyna
2007 - 2013 Sportster
not for '11-16' softails, '12-16' dynas, 14-16 dressers, 14-16 XL, 15-16 XG models

1020-1493
PV-1 (J1850)
power vision
This item is non-returnable*

$549.95
$457.49
add to cart

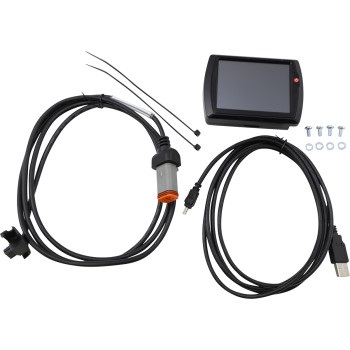

Black  for: all HD models with Delphi EFI
2001 - 2010 Softail
2002 - 2013 Touring
2002 + V-Rod
2004 - 2011 Dyna
2007 - 2013 Sportster
power visionnot for '11-16' softails, '12-16' dynas, 14-16 touring, 14-16 XL, 15-16  XG models
1020-2324
PV-1B (J1850)

This item is non-returnable*
$549.95
$457.49
add to cart

Delphi  Power Vision

Dynojet's answer to the racetuner. Reflashes your stock ecu with different fuel maps. Once used it is mated to the bike. Totally custom mappable too.

for '11-16 Softails, '12-16 dynas, 14-16 touring, 14-16 XL, 15-16 XG models

1020-1494
PV-2 (CAN)
power vision
This item is non-returnable*
$549.95
$457.49
add to cart
Black power vision
for '11-16 Softails, '12-16 dynas, 14-16 touring, 14-16 XL, 15-16 XG models
1020-2325
PV-2B (CAN)
This item is non-returnable*
$549.95
$457.49
add to cart
*NOTE: All Returns and or adjustments for Power Vision must be made directly with Dynojet Research. For more information about Power Vision visit our catalog pages   page 525.

AUTO TUNE KITS FOR POWER VISION

Auto tune for  use with:
#1020-1493,
  1020-2324
1020-1532
  AT-110
$494.95
$431.49
add to cart
auto tunefor  use with
#1020-1493,
  1020-2324
includes weld-in
                             18mm  bungs
1020-1533
  AT110B
$509.95
$443.49
add to cart
Auto tune for  use with
#1020-1494,
1020-2325
1020-1534
AT120
$420.95
$361.49
add to cart
auto tunefor  use with
#1020-1494,
1020-2325
includes weld-in
                            18mm bungs
1020-1535
  AT120B
$429.95
$374.49
add to cart
