Dynojet Multi-Function Hub & LCD Display

Dynojet Multi-Function Hub: map selection switch, gear position/speed input, boost input, programmable output, & LCD Display: displays all power commander data in "real time", weather resistant, all MFH data is available.

phone: 309-517-1361       To show product directory click here                  Home

Dynojet Multi-Function Hub & POD 300 Display

Dynojet multi-function  hub
Hub kit

Hub With map switch and handle bar bracket, gear position/speed, pressure input and relay harnesses

Dynojet hub1

enlargement of hub

Your Power Commander's firmware may need to be updated to use this device.

Boost Input
When using a Power Commander on turbo charged applications the Boost Input option makes it possible to have the fuel automatically increase with boost level. When an adjustable boost controller is used, this capability eliminates the need for re mapping each time the boost level is changed.
Analog Output
Based on the data from the Power Commander and the inputs from the Multi-Function Hub, a solenoid, relay, warning light, etc. can be triggered. This can be used to activate items such as a shift light, Nitrous Oxide system, or air shifter.
Buying the Multi-Function Hub is easy


1020-0327
$214.95 add to cart hub-003:
Hub With map switch and handle bar bracket, gear position/speed, pressure input and relay harnesses
Dynojet hub 003





1020-0326
$183.95 add to cart
hub-002:
Dynojet hub 002

Hub With map switch and handle bar bracket

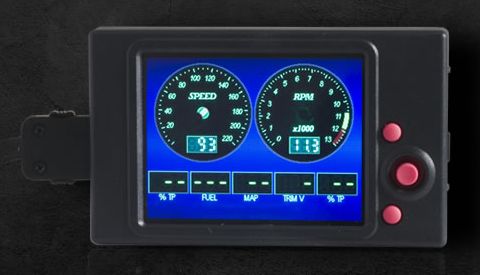

POD 300 digital display

POD 300
POD 300
POD 3001020-2371
$222.49
add to cart
POD 300
POD 300 Features
  • Real time fuel adjustments
  • Display channels real-time: RPM, TP, map position (when using map switch), duty cycle, fuel change, speed, pressure, ignition change & wideband air/fuel ratio- (w/WB2 or AutoTune connected)
  • Weather resistant for use in all conditions
  • Log channels saved to internal memory and can be viewed / analyzed with Dynojet’s PowerCore Software
  • High contrast display, viewable in direct sunlight
  • 3 Programmable light alarms
