Penske Motorcycle Shocks

Penske Motorcycle Shocks- triple adjustable, 2-way adjustable,single emulsion, more... at MD Racing - your one stop performance shop for your motorcycle needs on the race track and on the street.

phone: 309-517-1361       To show product directory click here


Penske Motorcycle Shocks

Formula one | triple adjustable | 2-way adjustable | single emulsion | Harley V-Rod | Street Shock

Penske  Motorcycle Shocks, MD Racing                      Penske Motorcycle  Shocks
Click here to view Suspension Services available

Any of the following shocks are available in 'drag race build' at NO Xtra Charge. We just need to know if the swing arm is extended and by how much and if you want the overall length of the shock shortened. Call Matt.

8900 Series Motorcycle Shock

Compare the following features to any other motorcycle shock and you'll find that Penske Racing Shocks are the best available shocks to the serious racer.

  • The 8900 series shock is completely owner rebuildable and revalveable if desired, resulting in fewer costly and visits to your service centre.
  • Remote / integral reservoir contains increased nitrogen volume for more consistent damping over a long race.
  • A floating piston separates the nitrogen from the oil, rather than a bladder type device that can fail.
  • Fully CNC machined 7075-T6 aluminium construction.
  • Hard anodised finish, making the unit both light weight and strong.
  • Heavy duty 5/8" diameter chrome plated chrome-moly shaft.
  • High quality spring steel valve shims make up the main piston valving, which can be changed by the owner to customise the damping characteristics of the shock.
  • Adjustable spring pre-load.
  • The best spring available - matched to your weight. 25 click rebound adjuster for extra fine rebound settings.
  • Low friction / stiction shaft bearing and high quality seals and wiper to keep out dirt.
  • Adjustable length eyelet, maximise rear ride height without removing the shock from the motorcycle.

Read about our available options for the Formula One, Triple adjustable2-way adjustable, shocks...read

8970Formula One Shock
PS-8970
remote reservoir********add to cart msrp $1895.00
PS-8970-PB w/Piggyback reservoir **** add to cart msrp $1995.00
Buyer note: include your bike information ( make model year ) ,
your weight w/o gear, and your riding skill level when ordering

( special instructions window will be provided)

Penske shocks are custom built for each customer - so - please allow 7 to 10 days for order processing before shipping
Straight from Formula 1 -- for Motorcycles - the 8970 provides a greater range of adjustability than any other shock, and seperates high and low speed adjustment

  • available with remote or piggyback style reservoir
  • ride height and preload adjustable
  • 35 clicks of low speed adjustment
  • 65 clicks of high speed adjustment
  • 36 clicks of rebound adjustment
  • high quality spring included- matched to your weight
  • owner rebuildable

call Matt if you need more information:
our toll free number 888-526-3250

** Tech support is only a phone call away during your race week-end with your purchase. Private tech line number will be provided after each purchase
Read about our available options for the Formula One, Triple adjustable2-way adjustable, shocks...read
.

Triple adjustable
PS-8987
Remote reservoir
add to cart msrp $1250.00
PS-8987-PB
Piggyback reservoir  add to cart
msrp $1395.00
PS-8987-B Remote Reservoir for the Buell ****** add to cart msrp $1350.00
Piggyback not available for the Buell

Buyer note: include your bike information ( make model year ) , your weight w/o gear, and your riding skill level when ordering ( special instructions window will be provided)
Penske shocks are custom built for each customer - so - please allow 7 to 10 days for order processing before shipping

call Matt if you need more information:
our toll free number 888-526-3250

Summary:

  • available with remote or piggyback style reservoir
  • ride height and preload adjustable
  • 25 clicks of low speed adjustment
  • 17 clicks of high speed adjustment
  • 36 clicks of rebound adjustment
  • high quality spring included - matched to your weight
  • owner rebuildable

** Tech support is only a phone call away during your race week-end with your purchase. Private tech line number will be provided after each purchase.8987The 3 Way Adjustable Motorcycle Damper, utilizing the 8760 Series compression adjuster isthe ultimate tuning tool for the professional race team. The 8760 series adjuster offers separateadjusters for both high and low speed shaft movements. The high speed adjuster controls largertrack inconsistencies that may disrupt themotorcycle, while the low speed adjuster controls slow shaft movements such as corner exit squat. When the 3 way adjustable motorcycle damper is being compressed, the fluid is displaced into the adjuster and passes through a piston in the adjuster. When manipulating the high speed adjuster, the secondary valve shims are preloaded, giving different compression forces. The low speed adjustment meters the fluid and bypasses the piston in the adjuster, providing an adjustable combination of bleed and shim controlled damping. Rebound flow occurs through two (2) check valves. In effect, the combination of spring loaded adjustments will offer the ultimate tuning combination. In addition to the standard 8760 adjuster position, that has a more linear flow characteristic, the new Digressive CD Piston allows greater separation between high and low speed adjustments (i.e. less crossover) and has a more digressive characteristic for bumps and kerbs. This digressive adjuster also uses a shim return to enhance response. Please inquire about both types when ordering.

Read about our available options for the Formula One, Triple adjustable2-way adjustable, shocks...read

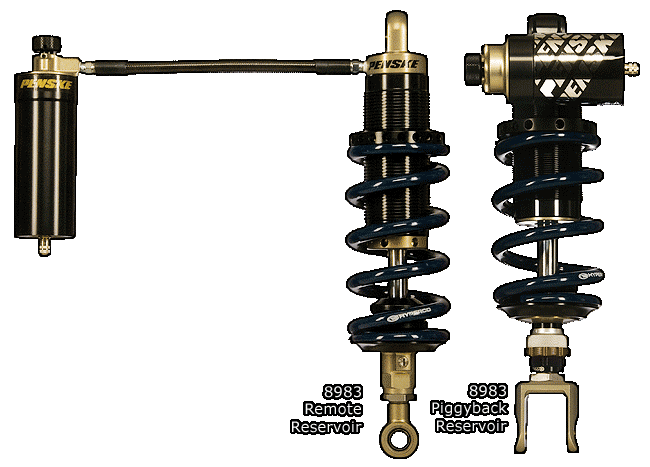

Two way adjustable
PS-8983 Remote Reservoir
add to cart msrp $950.00
PS-8983-PB Piggyback reservoir
add to cart
msrp $1195.00
PS-8983-B  Remote Reservoir for the Buell ***** add to cart
msrp $1050.00
( NOTE: we need to know the overall length of the existing shock from eye to eye ) Piggyback not available for the Buell
Buyer note: include your bike information ( make model year ) , your weight w/o gear,and your riding skill level when ordering ( special instructions window will be provided)
Penske shocks are custom built for each customer - so - please allow 7 to 10 days for order processing before shipping

call Matt if you need more information:
our toll free number 888-526-3250

Summary:

  • available with remote or piggyback style reservoir
  • ride height and preload adjustable
  • 16 - 20 clicks of compression adjustment
  • 36 clicks of rebound adjustment
  • high quality spring included - matched to your weight
  • owner rebuildable

** Tech support is only a phone call away during your race week-end with your purchase. Private tech line number will be provided after each purchase. 8983 reservoirsThe orifices make every adjustment, have a noticeable "feel" and have increased the range of adjustment. At higher shaft velocities, oil passing through the orifice in the compression adjuster drum reaches a maximum flow rate because of the viscosity of the oil and the hole diameter. At this point any additional oil flow is metered through a blow off valve which bypasses the drum completely to ensure a linear adjustment range.


Read about our available options for the Formula One, Triple adjustable2-way adjustable, shocks...read
Road Race Single adjustable emulsion           8900E
PS-8900E
******
add to cart msrp $695.00
Buyer note: include your bike information ( make model year ) , your weight w/o gear,and your riding skill level when ordering ( special instructions window will be provided)
Penske shocks are custom built for each customer - so - please allow 7 to 10 days for order processing before shipping

call Matt if you need more information:
our toll free number 888-526-3250

Summary:

  • low cost entry level for limited applications
  • high flow piston & low friction shaft bearing
  • ride height and spring preload adjustable
  • 36 clicks of rebound /compression adjustment
  • high quality spring included - matched to your weight
  • owner rebuildable & revalvable

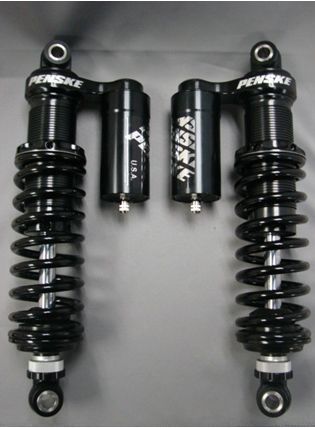

Harley Davidson V-Rod
PS-8980-VROD
*Piggyback reservoir*
   add to cart msrp $1695.00
                                                  Come as a pair - black     penske v-rod shock

Buyer note: include your bike information ( make model year ) , your weight w/o gear,and your riding skill level when ordering ( special instructions window will be provided)
Penske shocks are custom built for each customer - so - please allow 7 to 10 days for order processing before shipping

call Matt if you need more information:
our toll free number 888-526-3250



Street Shock
PS-8975 Street Double*****
  add to cart  msrp $825.00       new
This Shock is intended for the street rider

PS-8975-RH with ride height adj. *****  add to cart      msrp $875.00

Buyer note: include your bike information ( make model year ) , your weight w/o gear,and your riding skill level when ordering ( special instructions window will be provided)
Penske shocks are custom built for each customer - so - please allow 7 to 10 days for order processing before shipping

call Matt if you need more information:
our toll free number 888-526-3250

Summary:8975 street shock

  • No Remote Hose or Canister
  • Aluminum Main Piston with valving as normally associated with Penske Shocks
  • Aluminum Floating Piston to separate nitrogen and oil
  • Over 40 clicks of adjustment on Compression and Rebound,
  • for the double - total range is slightly less than normal 8983 shock (approx 10%)


OPTIONS:  for Formula One, Triple adjustable, 2-way adjustable

  1. negative spring / top out spring
    ( aids in better weight transfere in hard braking and increased stability). msrp $102.50
  2. AMA spec.valving and variable bleed piston build - includes the negative spring. msrp $250.00

Options will be available at checkout!
